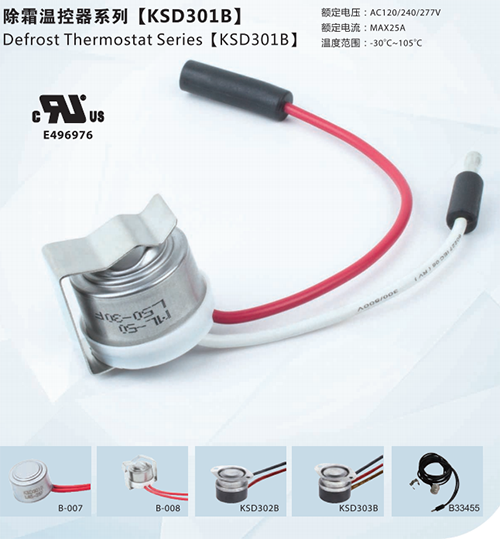

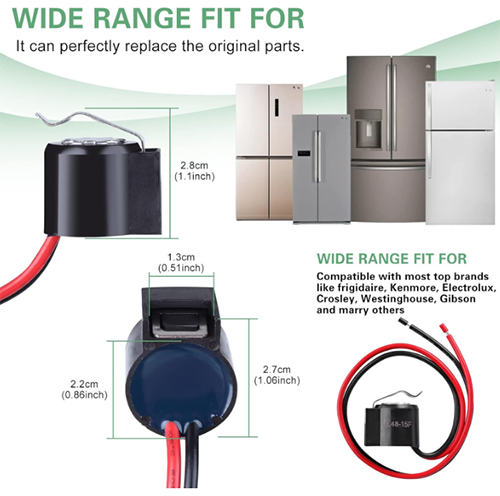

KSD301B 19mm Bimetal Disc Temperature Controls

    Introduction: Precision Temperature Control in Moisture-Prone Environments

    In industries ranging from HVAC to home appliances, accurate and durable temperature control is non-negotiable. The KSD301B Series 3/4" (19mm) Bimetal Disc Temperature Controls offer a robust, moisture-resistant sealed solution for engineers and manufacturers seeking reliability in challenging conditions. With a compact 19mm design, wide configuration options, and key safety approvals (UL, CUL), this series stands out as a versatile component for refrigeration, air-conditioning, freezing, and ice-making equipment.

Product Overview: Sealed Design Meets Versatility

    The KSD301B is a snap-action, bimetal disc thermostat designed to sense surface or ambient temperatures and switch electrical loads precisely. Its most distinctive feature is the moisture-resistant sealed construction, which prevents internal corrosion and contact failure in high-humidity or condensing environments—common failure points for open-type thermostats.

    Size: 3/4" (19mm) disc diameter

    Operating principle: Bimetal disc snaps at a calibrated set point

    Sealing: Hermetically influenced seal – moisture resistant (not submersible, but ideal for damp conditions)

    Terminals & leads: Wide variety – screw, quick-connect, wire leads (length and insulation optional)

    Mounting: Multiple configurations to fit brackets, panels, or direct surface mounting

    Technical Deep Dive: Why Bimetal Disc Technology Works

    Bimetal disc thermostats operate on a simple thermodynamic principle: two bonded metals with different thermal expansion coefficients. When temperature rises to the set point, the disc snaps (reverses curvature), opening or closing an electrical contact. The KSD301B’s snap-action ensures fast switching, minimizing contact arcing and extending service life.



Key technical advantages of the KSD301B

    Repeatability: ±5°F (±2-3°C) typical differential, offering consistent switching

    Contact rating: Commonly 15A–25A at 120/240VAC (confirm on datasheet)

    Temperature range: Typically -10°C to 150°C (customizable per application)

    Dielectric strength: ≥1500VAC for safety isolation

    Insulation resistance: ≥100MΩ at 500VDC

    Application Scenarios: Where the KSD301B Excels

  Refrigerators & Freezers – Defrost termination control, temperature limiting, fan delay. The sealed case prevents frost/ice from shorting terminals.

  Ice Makers – High-humidity, near-water environment demands moisture-resistant design; the 3/4" disc fits compact spaces.

  Air-Conditioning Units – Window, portable, and ductless mini-splits use bimetal disc controls for evaporator freeze protection or crankcase heater control.

  Vending & Beverage Coolers – Frequent door openings create condensation; sealed thermostat ensures reliable temperature regulation.

Industry Knowledge: Choosing the Right Temperature Control

    Sealing level: Open (lowest cost) vs. sealed (moisture/dust) vs. encapsulated (liquid-tight). The KSD301B’s moisture-resistant sealed design is the sweet spot for most appliances.

    Differential: Wide differential (e.g., 15°F) prevents short-cycling; narrow (5°F) offers tighter control. KSD301B can be customized.

    Mounting: Surface mount with spring clip, flange, or bracket – KSD301B offers multiple options.

    Approvals: UL/CUL (North America) and often VDE or CQC for global distribution.

    The KSD301B Series holds UL (Underwriters Laboratories) and CUL (Canadian UL) approvals. This means:

    l The component meets rigorous safety standards (flammability, dielectric strength, endurance cycles).

    l Faster end-product certification – using UL-recognized components reduces your time-to-market.

    l Compliance with NEC and CEC codes for appliances sold in the USA and Canada.

    Always verify the specific file number with your supplier and ensure the final assembly’s ratings align with the component’s limits.



FAQ – Frequently Asked Questions

    Q1: Is the KSD301B waterproof?
    No – it is moisture-resistant sealed, designed to withstand condensation and high humidity, but not direct immersion or pressurized water. For submersion, specify a fully encapsulated type.

    Q2: Can I get normally closed (NC) or normally open (NO) versions?
    Yes. Both configurations are standard. NC opens on temperature rise (e.g., safety cutout); NO closes on rise (e.g., fan control).

    Q3: What is the life expectancy?
    Typically 100,000 cycles at rated load. Sealed contacts and snap-action bimetal prolong life compared to creep-action devices.

    Q4: Are custom set points available?
    Yes. Manufacturers can calibrate from -20°C to 180°C. Minimum order quantities apply.

Conclusion: A Small Component with Big Impact

The KSD301B Series 3/4" (19mm) Bimetal Disc Temperature Controls deliver where others fail: in refrigerators, ice makers, freezers, and air conditioners exposed to moisture. Combining bimetal reliability, sealed housing, multiple configurations, and UL/CUL safety marks, it offers engineers a proven, cost-effective solution. For product designers prioritizing longevity, regulatory compliance, and performance in damp environments, the KSD301B is the clear choice.
