EWH-02 Electric Water Heater Tune-Up Kit Review

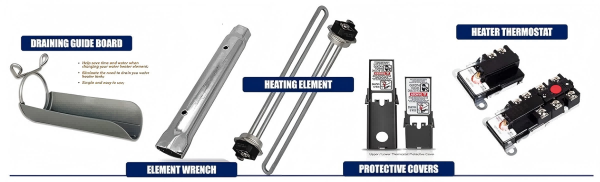

    EWH-02 is a universal replacement kit for residential electric water heaters, containing two 4500W 240V screw-in elements, upper and lower thermostats, and protective covers. It fits most major US brands and supports DIY maintenance and professional service use.



Key Specifications

    Wattage: 4500W per element

    Voltage: 240V AC, approx. 18.75A

    Thread: 1-inch NPT/NPSM universal

    Watt density: Medium for hard and soft water

    Material: Copper sheath with zinc plating or Incoloy

    Thermostats: Upper with high-limit reset, lower standard

    Compatible brands: Rheem, AO Smith, Bradford White, Kenmore, State, Whirlpool, GE







Who Is This Kit For

    1. Homeowners with weak or inconsistent hot water

    2. Rental property managers for preventive maintenance

    3. DIY renovators passing home inspections

    4. Plumbers and handymen for universal stock



Why Replace Both Elements and Thermostats

    Upper thermostat controls power switching and high-limit safety. Aging causes pitted contacts, stuck modes, frequent trips, or dual-element overload.     Replacing both avoids repeat failures and extends service life.



Installation Best Practices



    1. Cut off 240V power and verify with a non-contact voltage tester

    2. Drain the tank completely; open the relief valve for faster flow

    3. Use a ‑1/2" hex socket or dedicated element wrench

    4. Apply Teflon tape only on threads, not on gaskets

    5. Ensure good ground contact by cleaning paint or rust

    6. Test continuity before power; never dry-fire new elements





FAQ

    Will EWH-02 fit my heater?

    Fits most 40–50 gallon electric tanks with 4500W 240V screw-in elements. Not for heat pump, tankless, or gas heaters.

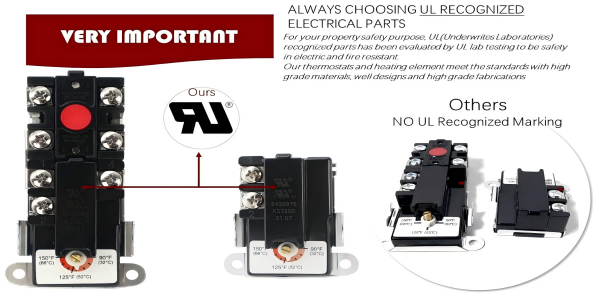

    Upper vs lower thermostat difference?

    Upper has a red reset button and power switching; lower only regulates temperature. Do not swap positions.

    Can I install only one element?

    Technically possible but recovery will be very slow. Replace both together for balanced performance.

    How often to tune up a water heater?

    Every 5 years in hard water areas; every 8–10 years in soft water areas.



Industry Note

    Universal kits like EWH-02 reduce inventory and cost compared to branded parts. They meet standard specs for most residential electric heaters.
