EWH 00 Water Heater Thermostat Double Element Replacement

The EWH 00 water heater thermostat kit is a premium replacement solution for dual element electric water heaters. It effectively resolves common issues such as insufficient hot water unstable temperature and heating failure. Home users can finish replacement by themselves without hiring professional maintenance or replacing the whole water heater unit.

Product Overview

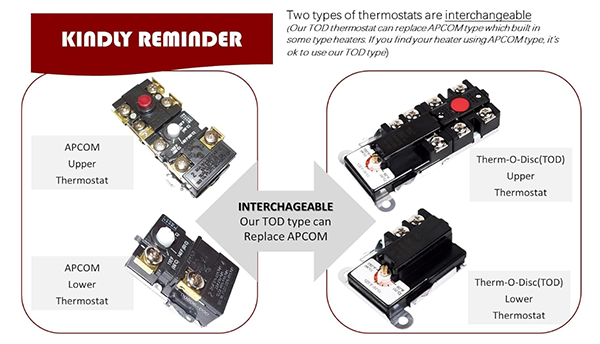

This thermostat set is specially designed for dual element electric water heaters including both upper and lower thermostats as core control components. Different from ordinary heating element parts it solves the root cause of temperature control malfunction perfectly.

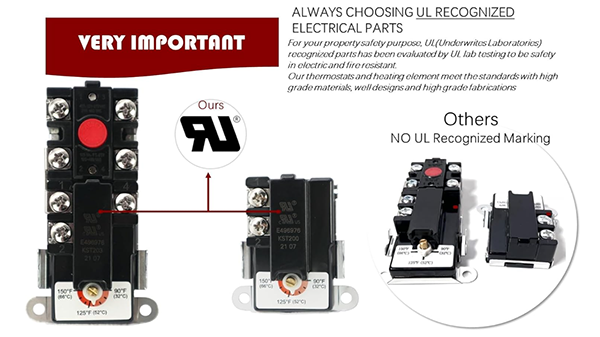

The upper thermostat comes with a high limit reset button and priority switch to monitor and control upper water temperature.

The lower thermostat maintains constant temperature for the bottom heating element to keep overall water temperature stable.

It is compatible with most 30 to 80 gallon residential dual element water heaters and fits mainstream brand models.

Rated voltage covers 120V to 240V AC with 40A maximum current fully matching standard household circuit specifications.

It is recommended to replace upper and lower thermostats at the same time. One faulty thermostat usually means the other has reached the end of its service life due to contact oxidation or bimetallic aging. Combined replacement avoids repeated breakdowns and cuts long term repair cost.

Working Principle of Dual Element Thermostat

Dual element water heaters adopt sequential heating logic instead of simultaneous operation which helps users quickly judge faulty parts.

1. When the tank is full of cold water the upper thermostat activates the upper heating element while the lower element stays standby.

2. Once the upper water reaches the preset temperature the upper thermostat switches power supply to the lower unit.

3. The lower thermostat starts working and heats the rest water to the standard temperature.

4. When the whole tank reaches ideal temperature both thermostats shut off automatically and restart when water cools down.

Common Fault Symptoms & Troubleshooting

Most water heater temperature problems are caused by damaged thermostats. You can match symptoms to locate faults accurately.

Hot water runs out quickly usually indicates lower thermostat failure.

Continuous overheating and relief valve leakage result from stuck upper thermostat contacts.

No hot water at all is mostly caused by tripped high limit protection or internal damage.

Frequent circuit breaker tripping means short circuit risk of the upper thermostat.

This EWH 00 thermostat adopts upgraded bimetallic strip and silver alloy contacts to restore stable water heater operation durably.

DIY Replacement Advantages

This thermostat kit features user friendly installation with no professional tools required. Ordinary homeowners can complete replacement independently saving expensive plumber service fees. With strong universal compatibility it is a cost effective and reliable choice for residential water heater temperature control repair.
