EWH 03 Electric Water Heater Tune Up Kit With Element Wrench



Product Overview: What's Inside the EWH-03 Kit?

Unlike basic tune-up kits that require separate tool purchases, the EWH-03 includes the specialized element wrench – a necessity for removing seized or corroded heating elements without damaging the tank.

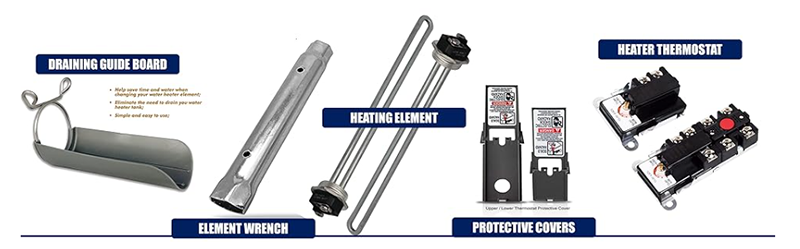

Complete Component List:

Component	Quantity	Specifications
Upper thermostat	1	Built in red high limit reset button
Lower thermostat	1	Standard daily temperature control
Heating elements	2	4500W 240V screw in type，3500W 208V derating
Element wrench	1	Heavy duty 1 1/2 inch socket design
Protective covers	2	Fit thermostat and element compartments

Compatibility: Fits most residential double-element electric water heaters from Rheem, AO Smith, Bradford White, Kenmore, State, GE, and Whirlpool (30–80 gallon tanks).



Technical Deep Dive: Understanding 4500W/240V Elements and 208V Derating

The EWH-03 includes two 4500W 240V heating elements, but many apartments and commercial buildings use 208V from three-phase service. Here's what that means in practice:







Application Scenarios: Who Needs the EWH-03 Kit?

Homeowners facing no hot water – If both elements failed or one burnt out, this kit provides a complete overhaul. The included wrench means no tool shopping mid-project.

DIY first-timers – The EWH-03 removes guesswork: you get every needed component plus the correct tool. Follow a 20-minute YouTube tutorial and restore hot water the same day.

Rental property owners – Keep one EWH-03 kit in each maintenance closet. When a tenant reports lukewarm water, you can fix it immediately without running to the store.

Handymen and small contractors – Stocking this kit reduces truck inventory and ensures you won't arrive on site missing a critical component or tool.



Industry Knowledge: Should You Replace Elements or Thermostats First?

Many DIYers guess wrong and waste money. Here's a simple diagnostic table:

Symptom	Most Likely Failure	Does EWH-03 Fix It?
No hot water, reset button tripped	Upper thermostat or element	✅ Complete fix
Hot water for 5 minutes, then cold	Lower thermostat or lower element	✅ Yes
Water takes forever to reheat	One burnt element	✅ Both elements replaced
Breaker trips randomly	Grounded element	✅ New elements included
Water normal but rusty	Corroded element sheath	✅ Elements included





Step-by-Step Installation Tips

1．Turn off power at the breaker – Verify with a non-contact voltage tester. 240V is lethal.

2．Attach a garden hose to the drain valve – Run it to a floor drain or outside. Open the pressure   relief valve for faster draining.

3．Remove old elements using the included wrench – If seized, tap the wrench with a hammer. Turn counterclockwise.

4．Clean threads inside the tank openings – Use a wire brush. Remove old Teflon tape or rust.

5．Install new elements – Apply Teflon tape to threads (2–3 wraps). Hand-tighten, then use the element wrench for final 1/2 to 3/4 turn. Do not overtighten – gasket compression is enough.

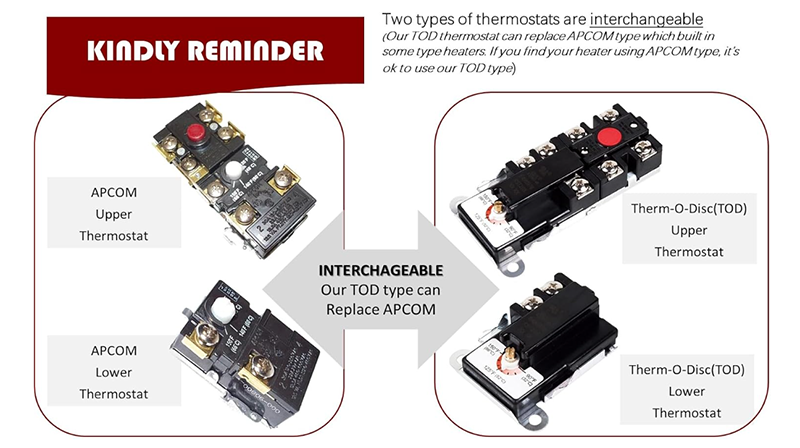

6．Replace both thermostats – Label wires before removal. Match wire positions to the new units (terminal layouts are standard).

7．Refill the tank completely – Open a hot water faucet until water flows steadily (no air sputtering). Never turn power on with an empty tank – dry firing destroys a new element in seconds.

8．Restore power and wait 30 minutes – Check for hot water. Press the red reset button on the upper thermostat if needed (shipping can trip it).



FAQ – Frequently Asked Questions

Q1: Is the element wrench compatible with all water heaters?
Yes. The 1-1/2" hex socket fits standard screw-in elements used in over 95% of US residential electric water heaters. It does not fit flange-style elements (rare, mostly commercial).

Q2: Can I use this kit on a 120V water heater?
No. The EWH-03 is designed for 208V–240V systems. Check your tank's rating label before ordering.

Q3: My water heater has 5500W elements. Can I use the 4500W EWH-03 elements?
Yes, but recovery time will be slightly slower. The thermostats are compatible. However, going from 5500W to 4500W reduces amperage, so your existing wiring and breaker are still safe (they will be less loaded).

Q4: How tight should the element be with the wrench?
Tighten until the gasket compresses – typically 1/2 to 3/4 turn after hand-tight. The element wrench helps you achieve this without slipping. Over-tightening can crack the tank opening or deform the gasket.

Q5: Does the kit include a replacement anode rod?
No. The EWH-03 focuses on electrical components (elements, thermostats, and wrench). Anode rods prevent tank rust and are a separate maintenance item.





Conclusion

The EWH-03 Electric Water Heater Tune-Up Kit with Element Wrench is the ultimate all-in-one solution for restoring hot water. With two 4500W 240V heating elements, upper and lower thermostats, protective covers, and a heavy-duty element wrench, it provides everything needed for a complete overhaul. Compatible with most major brands and both 208V/240V systems, this kit empowers homeowners and professionals alike to perform fast, reliable repairs without multiple trips to the hardware store.
