Complete Guide to EWH-05 Electric Water Heater Thermostats: Working Principles, Troubleshooting, and Professional Selection Advice

In a household hot water system, the water heater thermostat is a small yet indispensable core component that directly dictates hot water comfort and daily energy consumption costs. Fluctuating water temperatures, inefficient heating, or frequent equipment malfunctions often stem from faulty or mismatched thermostats. Whether you’re a homeowner troubleshooting hot water system issues, a plumber sourcing reliable replacement parts, or a project procurer selecting thermostats in bulk, mastering the knowledge of this component is key to optimal system performance. This guide delves deep into the Z EWH-05 Electric Water Heater Thermostat and its matching tune-up kit—UL-certified premium solutions—covering working principles, practical troubleshooting, professional selection tips, and product advantages, to provide actionable insights for all your hot water system needs.

Section 1: Working Principle & Core Product Introduction

1.1 Working Principle of Immersion Temperature Controller

The Z EWH-05 is built with a high-precision immersion temperature control core, featuring a long, corrosion-resistant temperature-sensing probe that inserts directly into the water heater tank. This design enables real-time, direct water temperature sensing (detection accuracy ±1℃), eliminating the lag of indirect temperature measurement. Its internal structure integrates two independently functioning control systems: one for primary temperature regulation and the other for overheat protection. The dual-system design ensures mutual backup, preventing heating system failure or overheating risks caused by a single system malfunction, and greatly enhancing the safety and stability of the water heater.

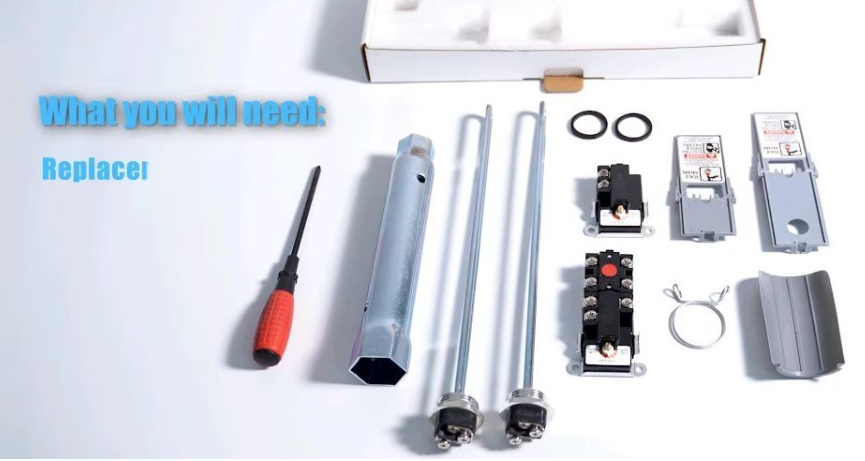

1.2 Z EWH-05 Electric Water Heater Tune-Up Kit (UL-Certified)

As a professional plumber’s repair pack paired with the Z EWH-05 thermostat, the tune-up kit is a one-stop solution for fixing the most common faults of electric water heaters. It is officially UL-certified, complying with international safety and quality standards, and undergoes strict factory testing to ensure reliable performance in long-term use.

Core Features of the Kit:

Enables quick and easy repair of electric water heater common faults (e.g., temperature control failure, heating element aging, circuit contact issues);
Renews the key electrical components of water heaters, effectively restoring heating efficiency and prolonging the overall service life of the water heater by 3-5 years under normal use;
Multiple assortments available, with customized component combinations for different fault repair and replacement needs, meeting the diverse demands of plumbers and homeowners;
All components are precision-manufactured with high wear resistance and corrosion resistance, adapting to the high-temperature and humid working environment of water heaters.

Universal Compatibility: The Z EWH-05 thermostat and its tune-up kit are fully compatible with mainstream water heater brands worldwide, including A O SMITH, BRADFORD WHITE, CRAFTMASTER, GENERAL ELECTRIC, GS WOOD, KENMORE, LOCHINVAR, MOR-FLO, RELIANCE, RHEEM, RICHMOND, RUUD, STATE and more. No additional modification is required for matching, realizing direct plug-and-play replacement and greatly reducing installation time and labor costs.

For detailed product specifications, assortment models, and technical drawings of the Z EWH-05 series, visit the official product page: http://www.waterheaterthermostat.com/en/productsd.php?pid=41

Section 2: Common Troubleshooting & Practical Solutions

The Z EWH-05 thermostat is designed with a fault self-detection function, and most common water heater temperature control problems can be diagnosed and resolved with simple steps. Below are the most frequent issues, their causes, and step-by-step troubleshooting methods—suitable for both professional plumbers and DIY homeowners:

2.1 Fluctuating Water Temperature (No Stable Hot Water)

Possible Causes: Loose temperature-sensing probe, poor contact of the internal control system, or aging of the kit’s contact components;
Troubleshooting: 1) Check if the temperature-sensing probe is firmly inserted into the tank and free of scale buildup (clean scale with a soft brush if present); 2) Inspect the wiring connection of the thermostat and kit components, re-plug loose wires and fasten connectors; 3) Replace the contact components in the tune-up kit if aging is found.

2.2 Water Heater Fails to Heat Up Completely

Possible Causes: Thermostat temperature setting is too low, overheat protection system is triggered, or heating element in the kit is damaged;
Troubleshooting: 1) Reset the thermostat temperature to the recommended range (45-60℃ for household use); 2) Cut off the power and restart the system to reset the overheat protection; 3) Replace the heating element with the matching one in the Z EWH-05 tune-up kit if damaged.

2.3 Thermostat Malfunctions with Abnormal Indicator Light

Possible Causes: Short circuit of the internal circuit, or faulty power supply component in the kit;
Troubleshooting: 1) Ensure the water heater is powered off and check for water seepage in the thermostat (replace the thermostat if seepage is found to avoid short circuit); 2) Replace the power supply component in the tune-up kit and test the power connection.

2.4 Overheating of the Water Heater Tank

Possible Causes: Failure of the dual independent protection system, or blockage of the thermostat’s heat dissipation port;
Troubleshooting: 1) Cut off the power immediately and drain excess hot water to lower the tank temperature; 2) Clean the heat dissipation port of the thermostat to ensure unobstructed heat dissipation; 3) Contact Z after-sales service for professional inspection of the dual protection system if the fault persists.

Key Tip: For all troubleshooting operations, ensure the water heater is powered off and the water pressure is relieved to avoid electric shock or scalding risks.

Section 3: Professional Selection Advice & Installation Tips

3.1 How to Select the Right Z EWH-05 Model

The Z EWH-05 series offers multiple assortments to adapt to different electric water heater specifications and usage scenarios; follow these professional criteria for selection:

Based on Water Heater Power: Select the corresponding thermostat model according to the rated power of the water heater (1.5kW-3kW for small household water heaters, 3kW-6kW for large household/commercial water heaters);

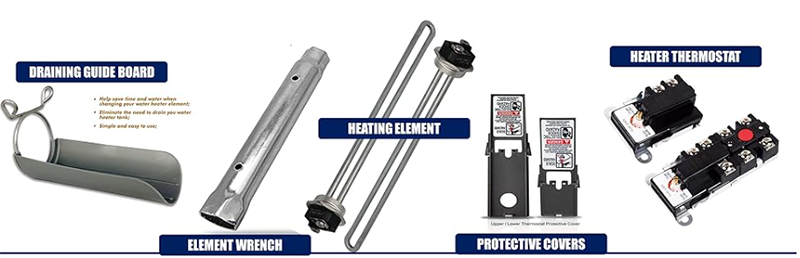

Based on Replacement Needs: Choose the basic single thermostat for simple temperature control failure replacement, and the full set tune-up kit for comprehensive maintenance (including heating element, contact components, and wiring);
Based on Brand Compatibility: While the Z EWH-05 is universally compatible with A O SMITH, RHEEM, KENMORE and other mainstream brands, confirm the water heater’s tank size and interface type for precise matching (refer to the product manual or official brand specifications).

3.2 Quick Installation Tips for Optimal Performance

Pre-Installation Preparation: Clean the water heater tank interface and remove scale/ rust to ensure the temperature-sensing probe and kit components are installed tightly;
Probe Installation: Insert the temperature-sensing probe to the specified depth (marked on the probe) to avoid inaccurate temperature detection caused by shallow insertion;

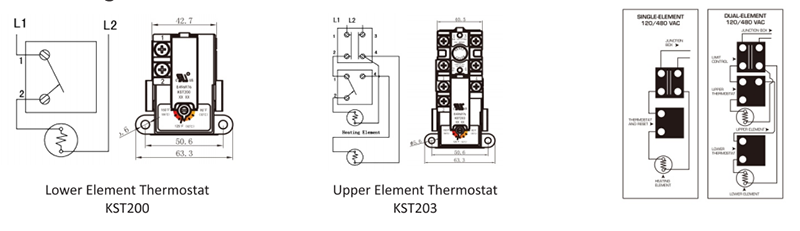

Wiring Operation: Follow the color-coded wiring instructions in the product manual to connect wires, and fasten all connectors to prevent poor contact;
Post-Installation Testing: Power on the water heater and set the temperature to 50℃, test the heating effect and temperature stability for 10-15 minutes to confirm no faults.

Section 4: Core Advantages of Z EWH-05 Electric Water Heater Thermostat

UL-Certified Quality & Safety: All Z EWH-05 products pass UL certification, complying with international electrical safety and quality standards, with reliable performance and no potential safety hazards;
Universal Compatibility: Seamlessly matches over 20 mainstream water heater brands including A O SMITH, BRADFORD WHITE, and RHEEM, realizing direct replacement without modification;
High-Precision Temperature Control: Dual independent system with ±1℃ detection accuracy, ensuring stable hot water temperature and avoiding sudden cold and hot water issues;
Long Service Life: Corrosion-resistant temperature-sensing probe and high-quality kit components, adapting to the harsh working environment of water heaters, with a product service life of up to 8 years;
Easy Operation & Maintenance: Simple installation, no professional tools required, and the matching tune-up kit enables one-stop fault repair, reducing maintenance costs and time.

Conclusion

The Z EWH-05 Electric Water Heater Thermostat and its UL-certified tune-up kit are professional, reliable solutions for electric water heater temperature control and maintenance. With its high-precision dual-system working principle, universal compatibility with mainstream brands (A O SMITH, RHEEM, KENMORE, etc.), practical fault self-detection function, and multiple assortments, it effectively solves common problems such as fluctuating water temperature, heating inefficiency, and frequent malfunctions of water heaters, while prolonging the service life of the equipment and reducing energy consumption and maintenance costs.

Whether you’re a homeowner looking to upgrade your hot water system, a plumber sourcing high-quality replacement parts, or a project procurer selecting thermostats in bulk, the Z EWH-05 series delivers the perfect balance of quality, safety, and practicality. For more detailed product information, assortment models, and bulk purchase quotes, visit the official product page via the link above, and get professional technical support and after-sales service from the Z brand team.
