Location:Home > Products > EWH-04 Electric Water Heater Tune-Up Kit
Products

EWH-03 Electric Water Heater Tune-Up Kit

  • - 【Contents】2x Water Heater thermostats: one is upper and another is lower thermostat. 120V ~ 480V, Temperature Adjustment Range: 90F ~ 150F. Thermo-O-Disc(TOD) Style, can exchangeable with Apcom Style.
  • - 【Contents】 2x Copper Heating Elements with Gaskets: 4500W@240 (3800W@208V), Screw-in Type.
  • - 【Contents】1x Element wrench socket: One end size 1-1/2-inch hex removing all residential screw-in water heater elements and another end size 1-1/16-inch hex removing all anode Rod 3/4" NPT. 10" Length providing the clearance needed for a correct connection and easy loosening.
  • - 【Contents】2x Protective covers for thermostats
  • - 【Application】Plumber's TOD Style Thermostats Kit provides a quick tune-up to prelong the water heater's life. The Tune-up Kits in Plumber's pack has good compatibility, fitting Most Electric Water Heaters.





Our composition provide your the best choice

In these plumber'S Pack, we provide your many choice with Various combinations of water heater repair parts and tools for your easiest and quickly fixing your electrical water heater. Checking above contents and your heater conditions before make the choice.

 1. Electric Water Heater Thermostats ( 1x Upper and 1x Lower)

  • - Work voltage: 120/240/480 VAC
  • - Energy saving range setting.
  • - Built in safety switch to prevent overheating.
  • - TOD style and compatible with Apcom style
  • - Reset Button, Temp. set Adjustable
  • - UL certification.

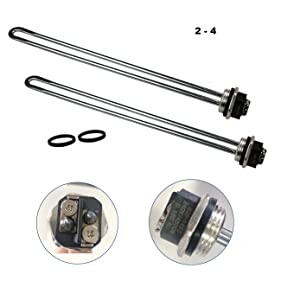

 2. High Density Wattage Heating Elements For Heater Tank Size ≥ 30 Gal

  •   4500W @ 240V (3800W@208V)
  •   COPPER Water Heater Element w/ Chromed Coating
  •   Insert Length: 13-9/16"(Fits heater tank inside diameter greater than 14").
  •   Model: SGB1453
  •   Screw-in type. 1" NPT thread
  • Use 1-1/2" Element Wrench
  • UL certification.

Available in SKUs of: EWH-01, EWH-02, EWH-03 and EWH-04

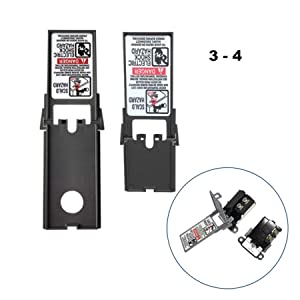

 3. Thermostat Terminal Protective Covers

  • - To protect your connection terminal
  • - UL certification
  • - Clip-in type by manual
  • - No need tools

Available in SKUs of: EWH-02 and EWH-04

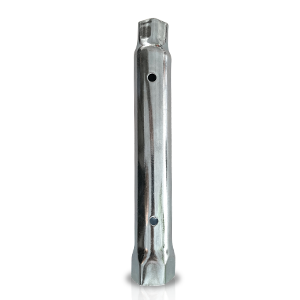

 4. Water Heater Element Wrench Compatible with all standard 1-1/2" screw-in water heater elements

  • - 2 in 1: 1-1/2" socket and 1-1/16" socket
  • - 10" length for easier work
  • - High quality steel
  • - Cross holes allow you to use a screwdriver
  • - Fits into offsets where an adjustable wrench couldn't be able to reached small space

Available in SKUs of: EWH-03 and EWH-04



CAUTION: Make sure both thermostats are set no higher than 120°F

WARNING! Higher temperatures increase the risk of scalding, but even at 120°F, hot water can scald. Install point-of-use Thermostatic Mixing Valves to reduce the risk of scalding

CAUTION: Make sure the new thermostat fits tightly against the tank.

You should NOT be able to slip a business card between the thermostat and the tank.
